Moonlight LED street light

Moonlight LED street light



Moonlight LED street lights, delicate arch design

Vertical and horizontal installation

Support 120lm/w to 160lm/w; IP66, IK08, qick open, Input circuit socket safety protection

Optional for solar powered, also can be used for smart street light, IOT lighting by Lora

With dimming, 3pins/5pins/7pins photocel, surge protection 6Kv/10Kv/20Kv SPD

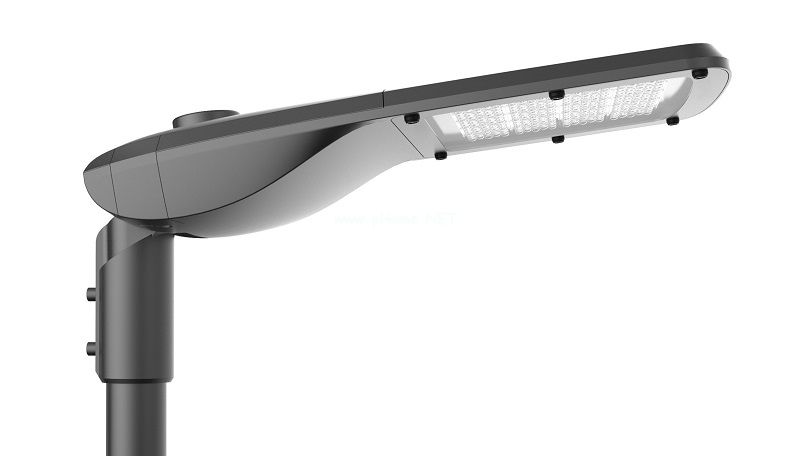

VIEW OF MOONLIGHT STREET LIGHT

 MOONLIGHT A.jpg

 MOONLIGHT B1.jpg

Structure breakdown


 Specification street lights:



Model Name
MOONLIGHT LED STREET LAMP
Power
30W
60W
80W
100W
150W
200W
240W
Luminaire Flux
4500LM
9000LM
12000LM
15000LM
22500LM
30000LM
36000LM
LED Chips
Philips Lumiled Module 5050 or 3030
Luminaire Efficacy
120-150 LM/W
CCT
2700K to 6500K
CRI
70
THD
<20%
Lifetime
108000H (at 25℃ ambient temperature)
Operating Temperature
-30℃-55℃
Driver
Meanwell/Inventronics
Electrical
Class I or Class II
Input voltage: 100-277VAC/50-60HZ; 108-305VAC/50-60HZ
6KV/10KV/20KV SPD optional
Cut-off connector (Power automatically switch off when opening)
Beam angle
TYPE II, TYPE III
Dimming
DALI / 1-10V / PWM / FIVE LEVELS DIMMING / optional
Options
Photocell / Surge protection device / External cable (different length upon request)
Color
Grey / Black / White (other color upon request)
Ingress Protection
IP66
Impact Resistance
IK08
Standards & Certification
ISO 9001:2015
 CE / CB / ENEC / IEC / LM79 / TM21 Pending



Specification photocell



ELECTRONIC TYPE PHOTOCONTROL

(TWIST-LOCK TYPE)



SPECIFICATION AND PARAMETER:



  •  ANSI C136.10 & UL773 STANDARD
  •  RATED VOLTAGE: 120V/240V (105V - 305V)
  •  TURN ON LIGHT LEVEL: 10-16LUX
  •  TURN ON/OFF RATIO: 1:3 TO 4
  •  TIME DELAY: 3-15SEC
  •  OPERATING TEMPERATURE: -40℃ TO +40℃
  •  RELAY: 15A
  •  MOV SURGE PROTECTION: 90J,160J,320J,360J
  •  ENERGY CONSUMPTION: LESS THAN 1WATT (120V<0.5W)
  •  ELECTRICAL LIFE:>5000 CYCLES
  •  SENSOR TYPE: SILICON PHOTOCELL
  •  HOUSING: UV STABILIZED PC
  •  FAILURE MODEL: FAIL ON (STANDARD), FAIL OFF ( FOR YOUR OPTION)
  •  SIZE: 80MM



If you have interesting for this model, ies file, tech spec, dialux design is availble, pls send inquiry to: sales@ziyumsolarlighting.com

Contact Us

Tel: +(86) 1-505-8822-896

Email: sales@ziyumsolarlighting.com

Benefits

  • New design
  • Tooless quick open
  • High luminaire efficiency 160lm/w available
  • Support dimming and photocell
  • Connect to internet optional
  • Smart with LoRa system
